Touring Rack

  • The Rack comes with a Mac Mini M4 (2024). It is mated to a patch panel for the included 3X USB-C screens and external devices.

    You can also patch your laptop to the rack. (2X Thunderbolt 4 ports required). With the correct softwares, you can individually control each hardware in the rack.

  • The Touring rack consists of an ETC Nomad lighting system with 1024 outputs.

    There is also a LX Keys Eos style keyboard included to make basic programming easy and familiar.

  • The Touring Rack includes a Behringer XR18 digital mixer. This is controlled via an iOS app or computer software. Alternatively, it can be controlled with OSC (Open Sound Control).

    The Mac has QLab Basic pre-installed. If you require a licence, these are available to rent at cost.

    The Mac has Dante Controller and Dante Virtual Sound Card installed.

  • Through a hired at cost Qlab licence ($5 per licence per day). You can cast video by HDMI to screens and projectors.

    Should you need a longer cable run, the rack includes a HDMI to CAT6 adapter extender to run the video signal over greater distances.

    Included is a Blackmagic Ultrastudio Recorder 3G. This is used to connect live feed HDMI & SDI outputting cameras to your computer via USB.

  • The rack has a Wireless Router included and an unmanaged Network switch. You can connect all your devices together to control them cohesively.

  • The Mac Mini includes an extensive list of software to meet all your needs.

    The software included is:

    ETC Nomad
    Cue Track
    Qlab 4 & 5 (Licences available)
    Logic Pro
    Garage Band
    Final Cut Pro
    iMovie
    Motion
    XR-Edit
    NDI Tools
    Dante Controller
    Dante Virtual Sound Card

  • This is a one stop shop for most small scale touring theatre needs.

    The entire contents, including cables and accessories, are neatly stored within the rack.

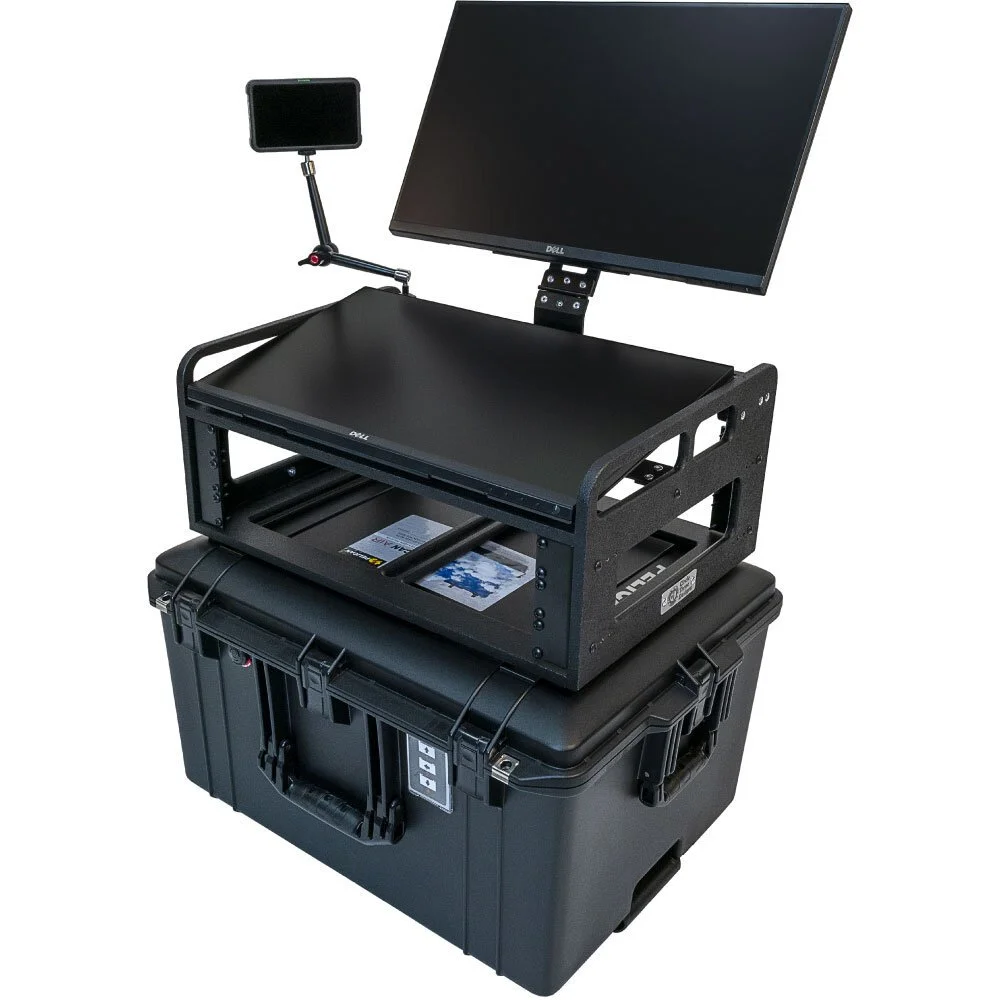

ETC Nomad 1024 (coming Soon)

  • This portable solution consists of an ETC Nomad lighting system with 1024 outputs.

  • There is a Cmd_Key Eos style keyboard included to make programming easy and familiar.

  • A 6 wheel encoder module with touch screen is included. An oversight in many Nomad systems.

  • A 10 Sub fader wing module is included. An oversight in many Nomad systems.

  • This system includes 2X 10 Point Touch Screens, mated to the case.

  • The desk is patched to a Wireless Router to enable remote access.

    There is a 2 port Ethernet Network switch. In addition to this, there is an independent Ethernet output on a different Sub-Net.

  • The desk neatly fits inside a Peli 1637 case. The case has wheels and a pull out handle, similar to a suitcase.

    This is a highly portable comprehensive Nomad setup.

    Dimensions: L:676 x W: 525 x D: 378 mm

ETC Nomad 6K (COming Soon)

  • Consists of an ETC Nomad lighting system with 6144 outputs.

    Please note to gain more than 2048 outputs a Node will be required.

  • This setup includes the official ETC EOS Programming Wing. The backlit keys share the same keypad layout as a Gio.

    The Wing includes a Master Fader Pair, 4X physical DMX512A/RDM ports & 4x standard rotary parameter encoders.

  • The official ETC Fader Wing is included with 20 faders.

  • Includes 2X 10 Point Touch Screens, mated to the case.

  • The desk is patched to a Wireless Router to enable remote access.

    There is a 2 port Ethernet Network switch. In addition to this, there is an independent Ethernet output on a different Sub-Net.

  • A compact wheeled flight case is included, with all components integrated into the case. Perfect for an easy plug and play approach.

    Dimensions: W: 1100 X D: 365 X W: 945 mm
